Name: AC Infinity AIRLIFT S12, Shutter Exhaust Ventilation Fan 12", Speed Controller
SKU: 264736

Description

High-Airflow Exhaust Fan: This fan is designed to ventilate heat, moisture, odor, and dust from various spaces. It includes an 8-speed manual controller employing PWM (Pulse Width Modulation), steel shutters, aluminum blades, and achieves an IP-44 rating for liquid and dust resistance.

Dimension and Capacity: The 12” fan measures 15.75 x 15.75 x 8.14 inches, supporting an airflow of 830 CFM, noise level at 62 dBA, and is equipped with Dual Ball bearings.

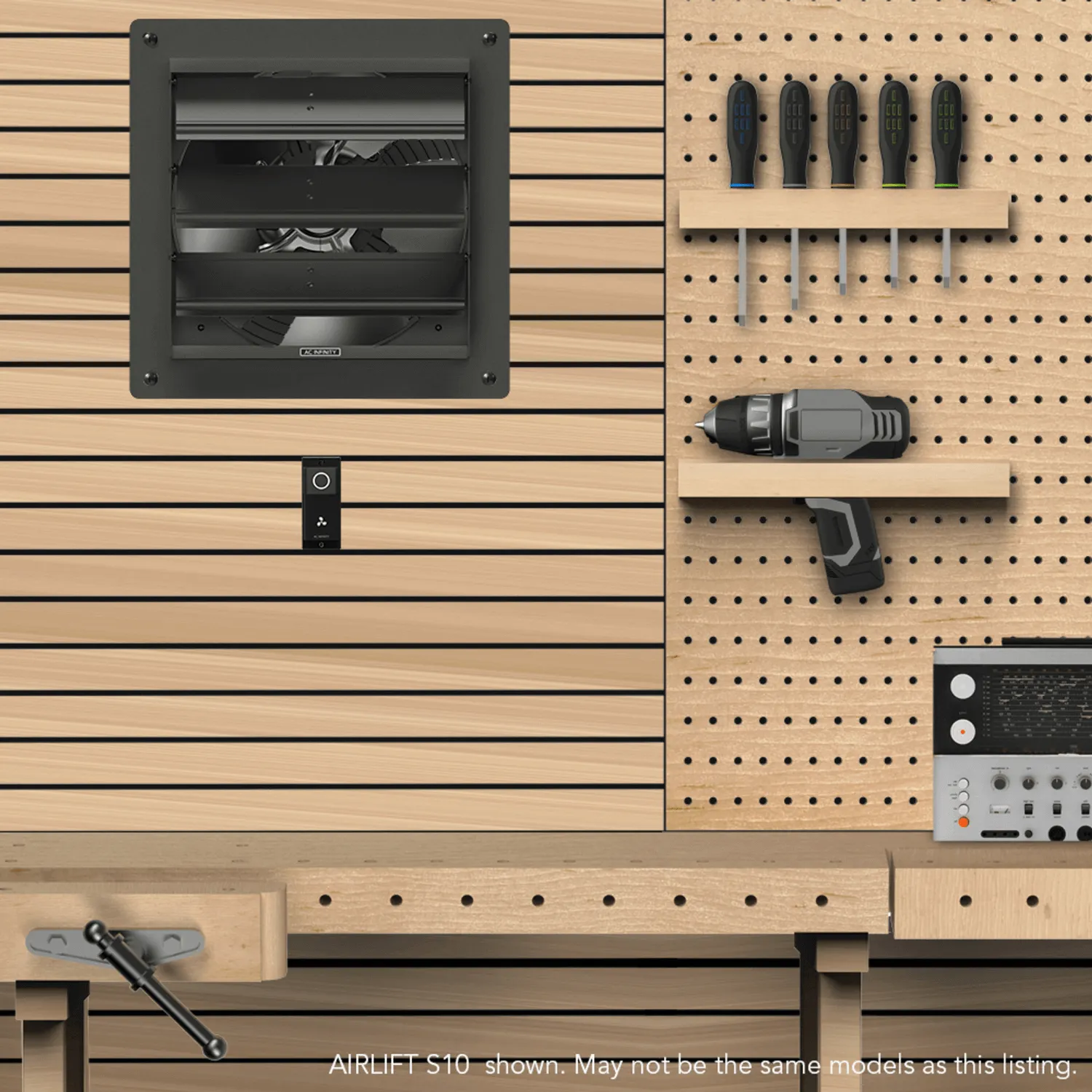

Product Description: Ideal for cooling and ventilating greenhouses, garages, attics, workshops, and sheds, this high-airflow fan can automatically ward off heat, moisture, odor, and dust. It features an inline speed controller using PWM-technology, innovative EC-motor which maximizes airflow while reducing energy consumption and noise levels, and includes a mounting kit.

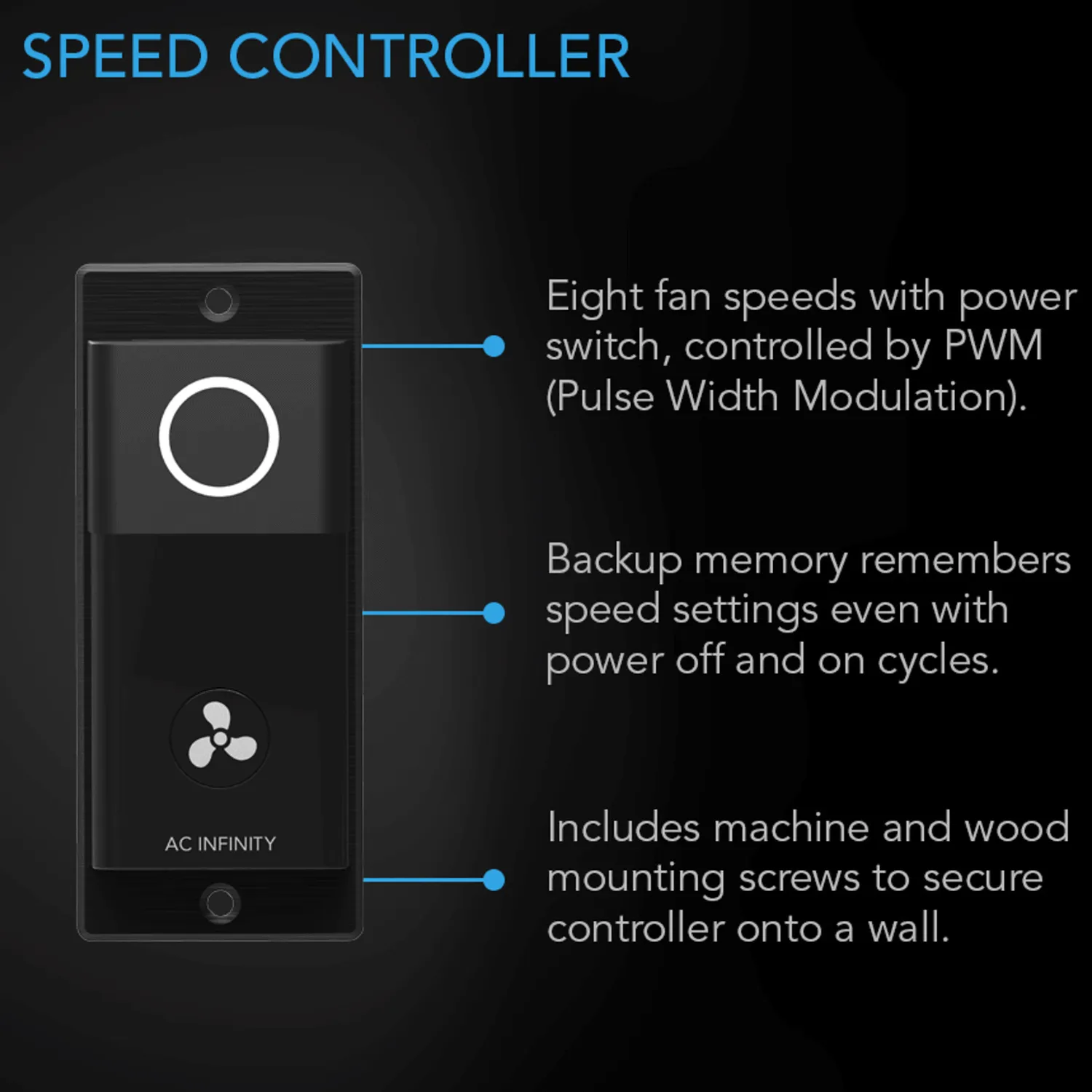

Precise Speed Controller: The inline speed controller helps adjust the fan’s speed for optimal noise and airflow levels in different settings. The EC-motor, controlled using PWM (Pulse Width Modulation), allows the fan to run smoothly at extremely low RPM speeds without creating motor noises and heat. It includes eight-speed options with a power switch, and a memory backup feature.

Heavy-duty Performance: This fan boasts weather and corrosion-resistant steel shutters which automatically close when not in use, and the blades and impeller are crafted from lightweight aluminum, weight-balanced for reduced vibrations. The fully-enclosed motor is permanently lubricated and houses dual-ball bearings with a 67,000-hour rating. The unit is IP-44 rated for high resistance to dust and liquids, ensuring performance even in harsh conditions.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AIRLIFT S12

Product Model: AC-ALS12

UPC Code: 819137021440

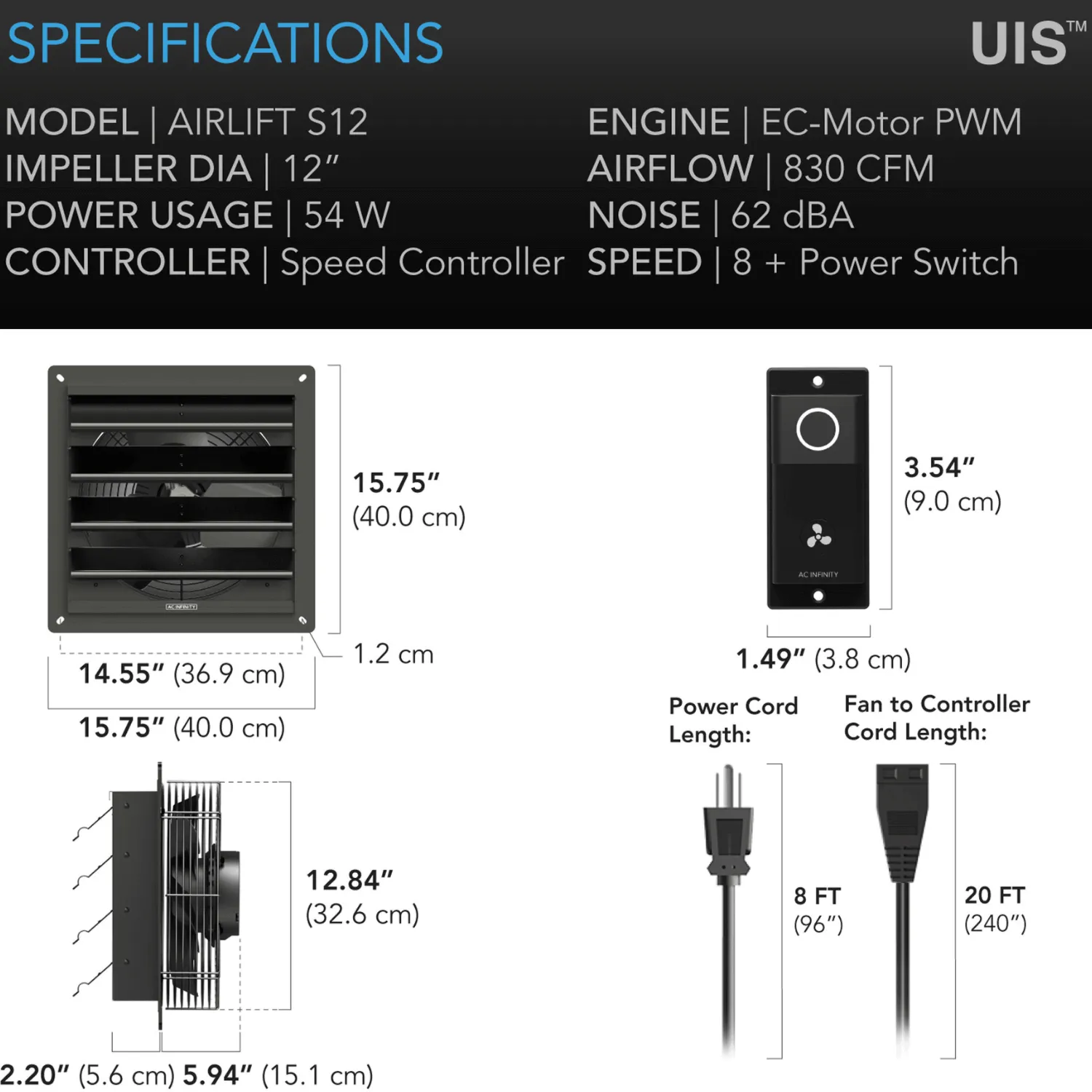

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 15.75 x 15.75 x 8.14 in. (33.0 x 33.0 x 20.7 cm)

Frontside Enclosure Dimensions: 13.38 x 13.38 x 2.20 in. (34.0 x 34.0 x 5.6 cm)

Required Mounting Hole: 13.54 x 13.54 in. (34.4 x 34.4 cm)

Hole to Hole Distance: 14.21 x 14.21 in. (36.1 x 36.1 cm)

Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)

Cord Length to Controller: 240 in. (20 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)

Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)

Hole to Hole Distance: 2.87 in. (7.3 cm)

Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)

Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs

Total Airflow: 830 CFM

Total Noise: 62 dBA

Static Pressure: 73 Pa

Operating Voltage: 100-240V AC

Power: 54W

Current: 1.0A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheets

Download the product manual:

Download the CE Certification:
